    4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX040HD
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $10.8
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d

    4 inch Bar Type TFT Display Module - 640×1280 Dots, MIPI Interface, ST7703-G5-DP Driving IC, 350c/d Brightness
    Product Specifications
    AttributeValue
    Display TechnologyTFT LCD
    TypeBar Type TFT
    Size4 inch
    Resolution640×1280 dots
    Brightness350c/d
    InterfaceMIPI
    Driving ICST7703-G5-DP
    Technical Parameters
    Part No.HX040HD
    Display Mode4 inch TFT display
    Outline Size (mm)47.73×97.55×1.93
    AA Size (mm)45.31×90.88
    Display Dots640×1280
    View AngleAll directions
    Working Temperature-20°C to 70°C
    Storage Temperature-30°C to 80°C
    Product Images

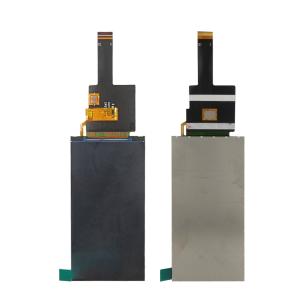

    4 inch bar type TFT display module front view 4 inch bar type TFT display module side view 4 inch bar type TFT display module technical details
    Technical Drawings
    Pin definition and technical drawing of 4 inch TFT display
    TFT Technology Overview
    TFT substrate input and CF substrate input flow chart TFT structure diagram
    Manufacturer Advantages
    • Cost-effective inland factory location
    • Advanced equipment for stable quality
    • Highly automated processes for efficiency
    • 20+ years experience in LCD engineering
    • Custom design capabilities
    Certifications
    • ISO14001
    • ISO9001/IATF16949
    • SGS certified LCD modules
    Company Profile

    Huaxin Technology (Enshi) Co., LTD - Hubei, Enshi

    Founded: 2009 | Registered Capital: 20 million

    Staff: 500+ (10% R&D, 15% QC)

    Specializes in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products

    Production Capacity
    Product20212022202320242025Unit
    LCD4.59999Thousands/Day
    LCM70150300450450Thousands/Day
    Backlight100200300500500Thousands/Day
    OLED1020304050Thousands/Day
    Applications
    • Car navigation systems & printers
    • Video communication & advertising displays
    • Automotive & medical devices
    • Fitness equipment & handheld devices
    • Industrial control systems & home appliances
    TFT Display Advantages
    • Excellent image quality with high resolution and color accuracy
    • Fast response times for smooth motion display
    • Wide viewing angles with minimal color shift
    • Energy efficient operation
    • Available in various sizes for diverse applications
    • LED backlighting for bright, uniform illumination
    TFT Display Considerations
    • Viewing angles may be limited compared to some technologies
    • Contrast ratio may be lower than alternative solutions
    • Backlighting increases power consumption
    • Potential for motion blur in fast-moving content
    • Limited flexibility in physical form factors
    • Color gamut may be narrower than some alternatives
