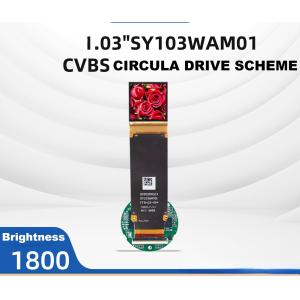

    1920*1440 Micro Oled Module 1.03 Inch Small Oled Screen With CVBS Interface

    Ask Lasest Price
    Brand Name : HuaXin
    Model Number : HX103F1CSFS02
    Certification : ISO14001/ ISO9001/IATF16949
    Price : $257~$256
    Payment Terms : T/T
    Supply Ability : 500K pcs per month
    Delivery Time : 4~6weeks
    • Product Details
    • Company Profile

    1920*1440 Micro Oled Module 1.03 Inch Small Oled Screen With CVBS Interface

    1920*1440 Resolution Micro Oled Module 1.03 Inch Small Oled Screen With CVBS Interface
    Product Specifications
    AttributeValue
    Display TechnologyAR display
    Size1.03 inch
    NameMicro oled display
    Resolution1920*1440
    InterfaceCVBS
    View angleAll
    Brightness1800 C/D
    Product Description

    1.03-inch Circular OLED Screen with 1920*1440 High-definition resolution, 1800cd/m² High-brightness CVBS Drive Solution, suitable for Smartwatches and Vehicle-mounted Instrument Panels.

    Technical Parameter
    Part No:HX103F1CSFS02
    Display Mode1.03 inch micro OLED with board
    AA size(mm)18.432*18.432
    Display dots1920*1440
    View AngleALL
    Brightness1800C/D
    InterfaceCVBS
    Testing boardCVBS board is optional (customization available)
    Product Images
    Drawing & Pin Definition
    Micro OLED pin definition diagram
    Micro OLED Product Knowledge

    The key advantages of Micro OLED (Silicon-based OLED) as an advanced display technology:

    • Ultra-High Pixel Density (PPI)
    • Thin, Lightweight, and compact
    • Superior Image Quality
    • Lower power consumption
    • Wide operating Temperature Range
    • High brightness & Efficiency (with advanced designs)
    • Manufacturing & Scalability benefits

    Micro OLED Disadvantages:

    • High production costs & limited supply
    • Limited brightness (compared to Micro LED)
    • Limited view angles
    • Shorter lifespan (compared to micro LED)
    • Limited application scope (small display only)
    • Motion Blur & Persistence issues (in VR)
    • Competition from micro LED
    Huaxin Advantage
    • Factory base located at inland city which has cost effective
    • Most advanced new equipment which can keep quality stable
    • Most processes using fully automatic equipment which has efficiency and stable quality
    • Professional engineers and production leaders who work in LCD field for more than 20 years
    • Self design for customized product

    Our certificates:

    • ISO14001
    • ISO9001/IATF16949
    • SGS of LCD module

    Huaxin Technology (Enshi) Co., LTD

    • Hubei.Enshi
    • Date of foundation: 2009
    • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
    • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
    • LCM includes: COB, TBA, COG, TP, OLED and other series
    • Register capital: twenty million
    • Current staff: 500+
    • R&D accounts for 10%
    • QC accounts for 15%
    Production Capacity
    Annual Production Capacity2021 (Current)2022 (Goal)2023 (Challenge)2024 (Challenge)2025 (Challenge)Remark
    LCD Production Capacity4.59999Unit: thousands of logarithms/Day
    LCM Production Capacity70150300450450Unit: Thousand piece/Day
    Backlight Production Capacity100200300500500Unit: Thousand piece/Day
    OLED Production Capacity1020304050Unit: Thousand piece/Day
    Product Application
    • VR/AR/MR headsets
    • Military / aerospace
    • Medical devices and microdisplays
    • Camera & electronic viewfinders
    • Automotive display
    • Wearable & smart glasses
    Micro OLED vs. Traditional OLED vs. Micro LED
    FeatureMicro OLEDTraditional OLEDMicroLED
    SubstrateSilicon waferGlass/plasticSapphire/glass
    PPI3,000-5,000+400-8001,000+
    Size<1 inch commonSmartphone/TV sizesScalable
    Power UseLowMediumVery Low
    LifespanModerate (OLED aging)ModerateVery Long
    CostHighModerateVery high

    Challenges:

    Limited lifespan (blue OLEDs degrade faster).
    Higher manufacturing cost due to silicon wafer integration.
    Currently small sizes (not suitable for TVs).

    Future of Micro OLED:

    Expected to dominate AR/VR and wearable displays due to unmatched pixel density.
    - Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this tech.
